ATV 1.5m width Gasoline Engine Lawn Mower Farm Cut Grass Machine Atv Tractor Mower Atv Fail Mower

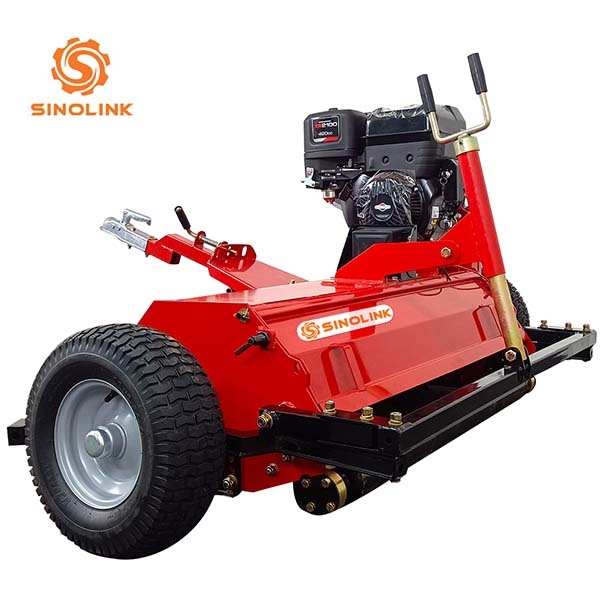

Description: SINOLINK flail mower for mounting on ATV. 420 cc engine with electrical start. The wheels can be fitted on the sides or on the rear of the flail mower. Equipped with double spindles for easy and fast adjustment of the cutting height. With adjustable drawbar.
Application: Designed to cut grass and other forms of vegetation.
Technical specifications
| Width: | With wheels fitted on the side: 193.5 cm |
| | With wheels fitted on the rear: 167.3 cm |
| Engine: | Model: Loncin G420F 420 cc 4-stroke with electrical starter |
| Capacity: | 5,750 m2/hour (at 5 km/h) |
| Fuel tank, capacity: | 6.5 l |
| Fuel: | Petrol 92 octane or higher |
| Engine oil amount: | 1.1 l |
| Engine oil type: | 10W-40 or alternatively, 15W-40 |
| Rotor drive: | Wrap spring clutch with triple belt drive |
| Operating speed: | Max: 10 km/h |
| Wheel size: | 16 x 6.50-8 |
| Flails: | 24 hammer flail |
| Working width: | 115.5 cm |
| Cutting height: | 0.9–20 cm |
| Dimensions (L x W x H): | With wheels fitted on the rear: 2007 x 1673 x 881mm With wheels fitted on the side: 1878 x 1935 x 881mm |
| Weight: | 240 kg |
| Noise level: | 83 dB |
1,Flail mower to be used with ATV/UTV, small tractor, car, etc..
2,Cuts effectively the large (wild) grass fields or roadsides.
3,The Flail Mower features changeable blade types for different types of mowing jobs.
You do not need a Lawn Mower, a Field Mower, and Trail mowers.
Simply change the blades to the correct type for your job.
4,Easily adjustable cut height
5,Flexible wheel setup (3 different wheel positions)
6,With optional openable top flap for making it easier to release the grass in case of jam at the rotor.
It also makes it easier to replace the hammers/blades.
- 15 hp Briggs & Stratton 420 ccm 4-stroke one cylinder fuel engine.
- Electric and manual start.
- Centrifugal clutch pulley (automatic drive engagement and disengagement).
- Sturdy toothed belts.
- Adjustable wheels height.
- Automatic belt tensioner.
- 6mm, powder-coated, strong, durable, robust body.
- Electronically balanced rotor.
- Weight: 280kg.
- Fuel tank capacity: 6.1l.
- Cutting width: 150cm.
- Working speed: 2-10km/h.
- Front aluminum flaps – against projectiles.
- Rear grass discharge.
- Anti-scalp rear roller. (It eliminates scalping in challenging conditions)
- Standard 50mm tow ball swivel hitch.
- Grease nipples on the height adjuster, on the belt pulley, on the rotor and roller bearings for smoother work.
- The cutting height can be adjusted from 15mm to 260mm.
- Flexible wheel setup: wheels can be positioned either on lateral sides or on front.
- (Making it capable of working in restricted narrow areas).
- Fully adjustable drawbar with 3 points offset function (towable inline or offset).
- Suitable for use with any vehicle (ATV, UTV, small tractor, or Jeep).
- Working efficiency : 2150-2550m²/h.

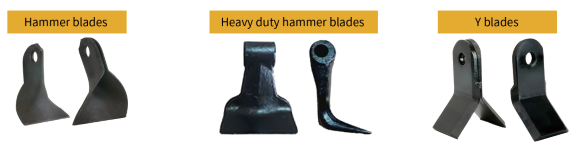

- Either Y blades or forged and galvanized hammer blades are applicable.
- Y-blades - for rough cutting, thick grass fields, etc,
- T-blades (hammer blades) - for a smoother finish on lawn/grass available optionally.
- Equipped with y-blade by default for rough cutting
- (It provides advanced mulching capabilities in the case of long/dense vegetation.).
Cutting height can be easily adjusted to fit your mowing needs.
Simply use the built-in rotating handle to raise or lower the cutting height to your desired need.
Once set, the handle can be locked to ensure the height remains the same for an even cut.
