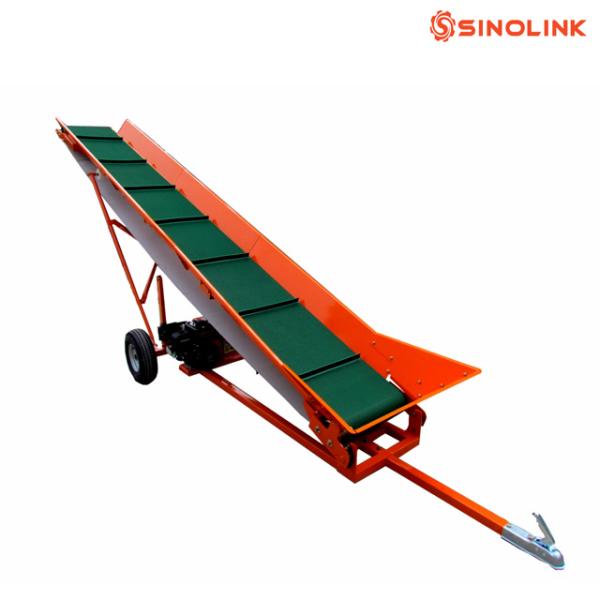

PVC Waste Wood Conveyor Belts For Firewood Logs 2.8m Height

Name: PVC Waste Wood Conveyor Belts For Firewood Logs 28m Height
Brand: SINOLINK
Price: 990 USD

Wholesale PVC Waste Wood Conveyor Belts For Firewood Logs 2.8m Height from china suppliers

Brand Name : SINOLINK

Model Number : FC500

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 990-1150USD/Unit

Payment Terms : L/C, T/T

Supply Ability : 300 unit per month

Delivery Time : 30work days

Packaging Details : Plywood Crate

After-sales Service Provided : online service

Max.height : 2.8m

Engine : 6.5HP Petrol 4 Stroke Engine

Belt material : PVC

Belt speed : 0.7m/s

Contact Now

Sinolink brand ATV 6.5 HP gasoline engine power log conveyor grain firewood lifter transmission machine

Product Description:

Newly Upgraded Firewood Conveyor FC500 with 6.5hp Lifan or Loncin recoil start engine!Make loading your firewood quick and easy with this FC500 foot firewood conveyor! This FC300 foot conveyor is powered by a 6.5 Hp gasoline engine to quickly take the wood you've split up, over into your truck. No more picking up piece after piece of firewood and throwing it into the truck to take back to the wood pile.

Product Features:

Hydraulic driven belt for smooth operation.
Adjustable height at the top end for different applications.
Towable; can be towed using the 2" hitch provided.
Sturdy construction to move your firewood.
One year manufacturer's warranty!

Product parameters:

Engine: 196cc, 6.5HP
Engine : RATO gasoline
EURO V / Manual start
Speed: 0.7m/s
Belt width: 500mm
Max height: 3000mm
Height can adjust by winch
Hydraulic Oil Tank:12L
Hydraulic Pump:304
Wheel size:5.7-8
Net Weight :350kg

Model	FC500
Horse power	6.5HP
Belt Width/thickness	500mm/5mm
Hydraulic Oil Tank Capacity	12L
Tire	5.7-8
Net Weight	375kg

PVC Waste Wood Conveyor Belts For Firewood Logs 2.8m Height

FC500 firewood conveyor Description:

Newly Upgraded Firewood Conveyor FC500 with 6.5hp Lifan or Loncin recoil start engine!Make loading your firewood quick and easy with this FC500 foot firewood conveyor! This FC500 foot conveyor is powered by a 6.5 Hp gasoline engine to quickly take the wood you've split up, over into your truck. No more picking up piece after piece of firewood and throwing it into the truck to take back to the wood pile.

Product Features:

Hydraulic driven belt for smooth operation. Adjustable height at the top end for different applications. Towable; can be towed using the 2" hitch provided. Sturdy construction to move your firewood. One year manufacturer's warranty!

PVC Waste Wood Conveyor Belts For Firewood Logs 2.8m Height

Loncin 6.5hp recoil start engine

Four-stroke with recoil start 4.1KW and 3600rpm 196cc and fuel tank 3.6L

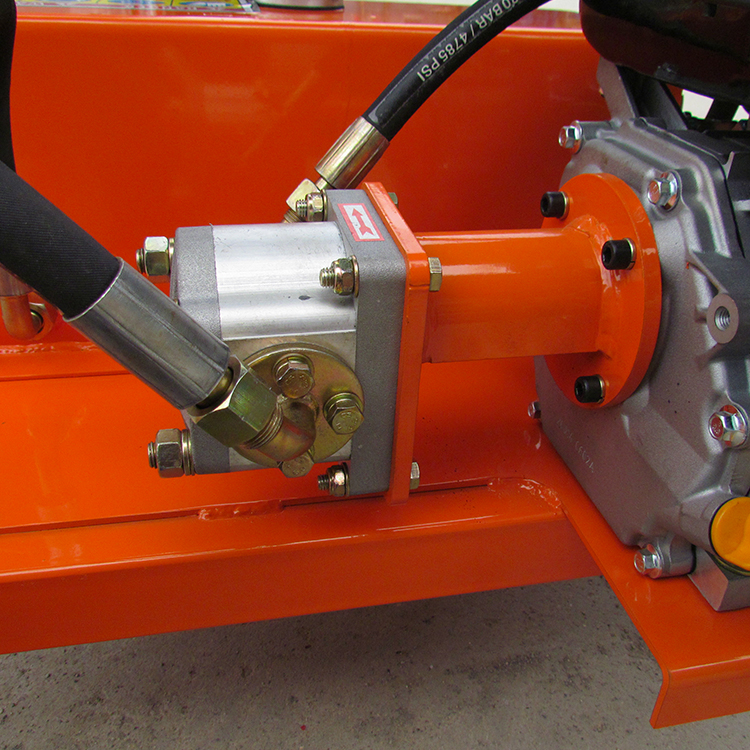

304 model hydraulic pump

Displacement is 4 ml/r Pressure is 10 Mpa Max speed is 2000 r/min

500mm width belt

Width is 500mm Thickness is 5mm Length is 9610mm

Height adjust manual winch

Belt winch and length is 3m Extended handle with fixed plate Forward and reverse

Nylon high quality roller

Avoid scratching the paint Winch belt extends life Smooth movement in the track

Conveyor safety lock design

Lock nylon pulley shaft Relieve the force on the winch Semi-automatic locking convenient and quick

Front safety cover plates

Prevent materials from falling out Prevent the roller from hurting Can be adjust according material Strong assembly by bolts
